Isothrum
Free · Runs in your browser · No sign-up

Build network labs visually. Run them anywhere.

Isothrum is a GNS3-style editor for containers and VMs. Draw your lab, cable it, and download ready-to-run Docker, Vagrant and Terraform files.

Open the editorSee how it works

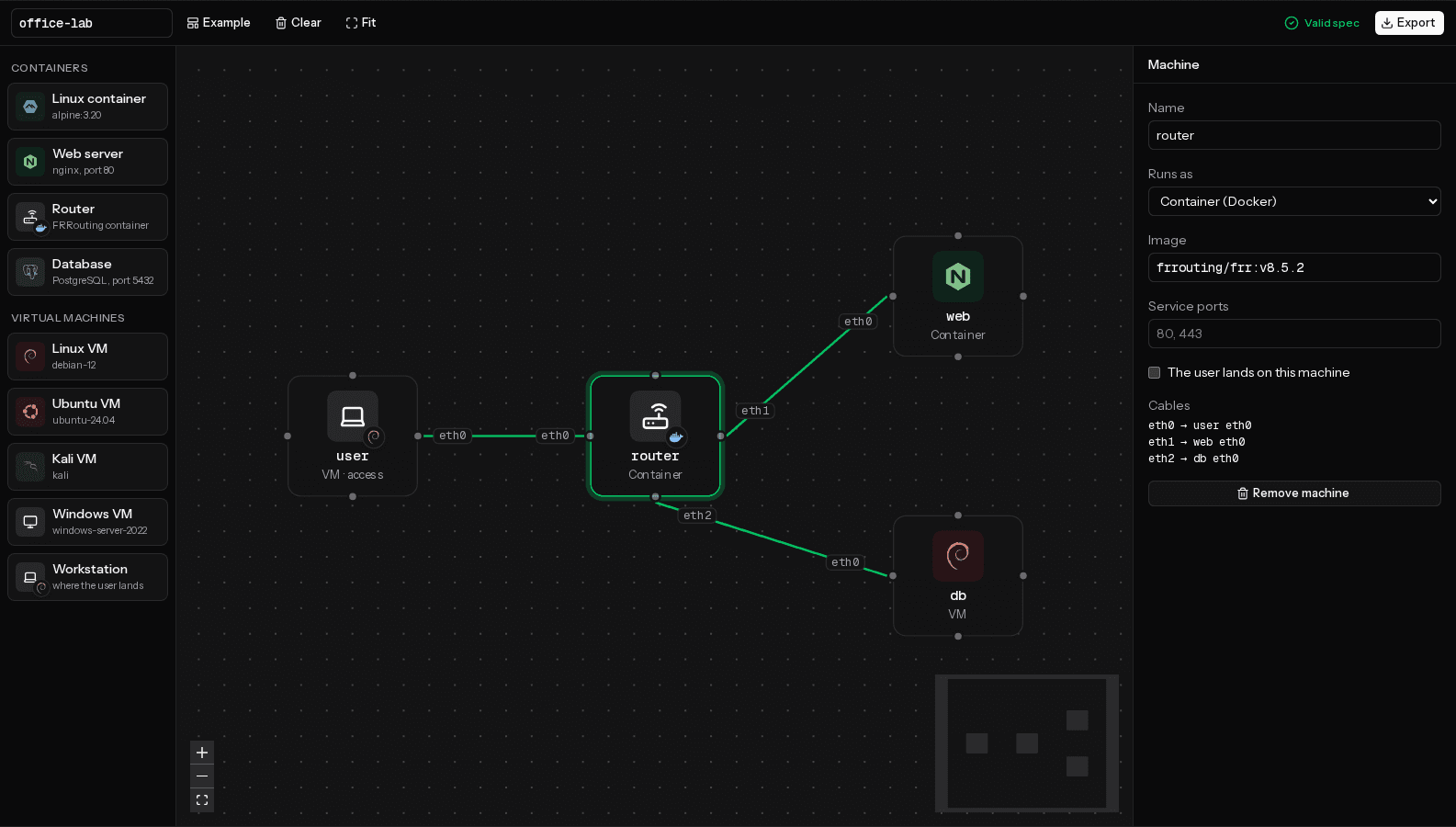

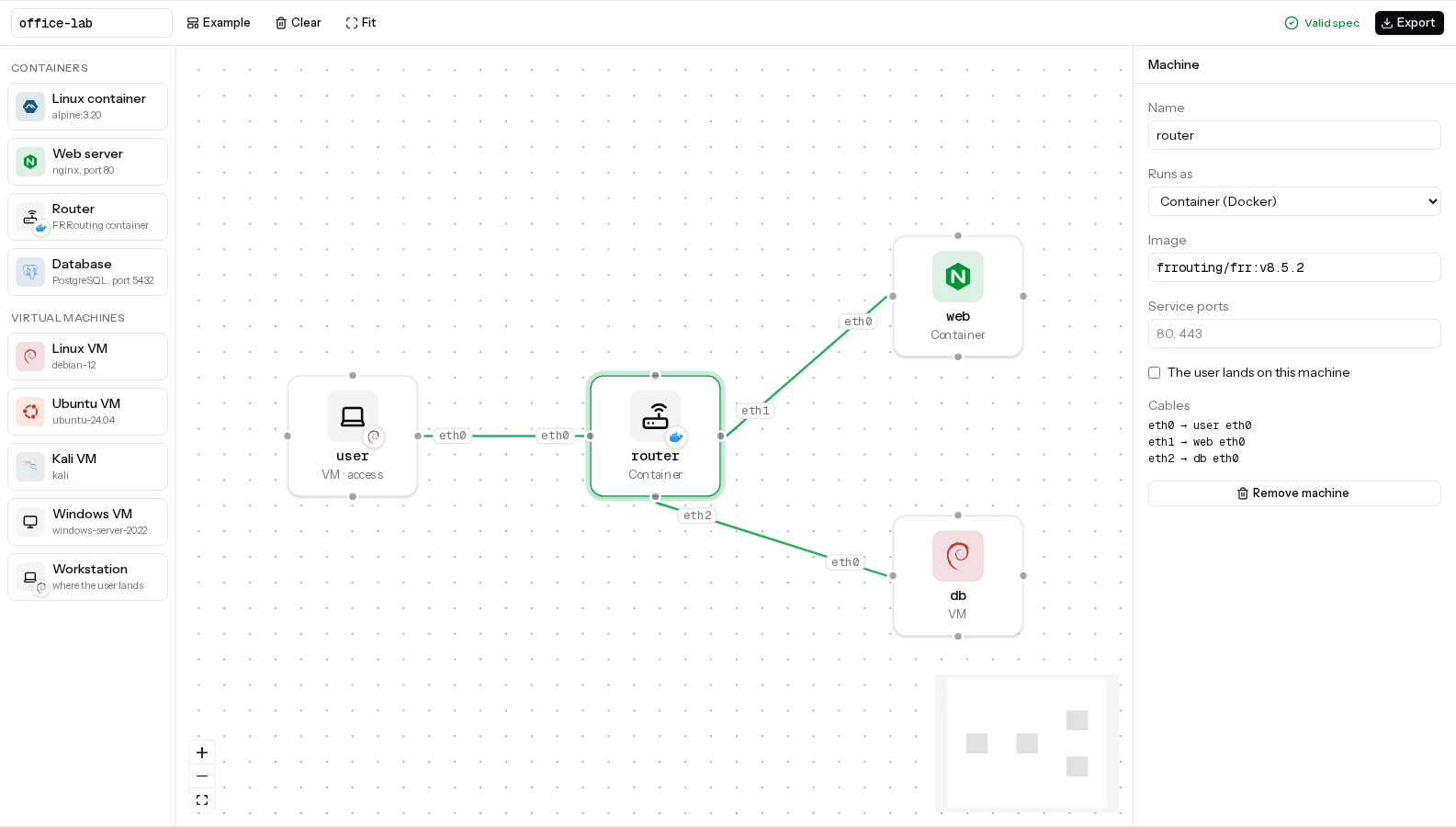

The Isothrum editor: a workstation, a router, a web server and a database cabled together on a canvas, with the generated isoloom.yml beside it.

One lab, exported to

  • Docker Compose
  • Vagrant
  • Proxmox
  • Kubernetes
  • AWS
  • Azure
  • Google Cloud
  • DigitalOcean
  • Linode
  • Oracle Cloud

Everything you need to sketch a lab, nothing to install

Isothrum turns a drawing into the files that build it, so you spend your time on the lab, not on the plumbing.

Draw it like GNS3

Drag devices onto a canvas and cable them port to port. Port names sit next to each cable end, so the diagram reads like a real rack.

Containers and VMs side by side

Put Docker images next to Debian, Ubuntu, Kali or Windows VMs and cable them together in the same lab.

One lab, every environment

Download the same lab for Docker Compose, Vagrant, Proxmox, Kubernetes, or Terraform on AWS, Azure, Google Cloud, DigitalOcean, Linode and Oracle Cloud.

Checked as you draw

Every change is validated by Isoloom. When something is wrong, you see which machine and what to do about it.

Private by design

The engine runs in your browser as WebAssembly. Your lab is never uploaded: it stays on your machine.

A file you own

Your lab is an isoloom.yml: readable YAML you can keep in Git, edit by hand, and run with the Isoloom command line.

From a drawing to a running lab in three steps

  1. 1

    Draw

    Drop machines on the canvas and drag a cable between two of them. Pick an image or an OS for each one.

  2. 2

    Download

    One click gives you a zip with the isoloom.yml and the Docker, Vagrant and Terraform files generated from it.

  3. 3

    Run

    Start it with the tool you already have. The same lab behaves the same way on every target.

terminal
unzip office-lab.zip -d office-lab && cd office-lab

# Containers only
docker compose -f .isoloom/docker/compose.yml up -d

# VMs, or containers and VMs together
cd .isoloom/hybrid && vagrant up

# In the cloud
cd .isoloom/cloud-docker/aws && terraform init && terraform apply

Built for learning

A lab is the fastest way to understand a network. Isothrum makes building one take minutes, not an afternoon.

Students

Practise networking, Linux and security on a lab you can break and rebuild in minutes.

Teachers and trainers

Design a lab once and give every student the same zip. It runs the same on their laptop or in the cloud.

Home labs and CTFs

Sketch an environment, run it on Docker today and move it to Proxmox or the cloud tomorrow.

Isothrum and GNS3

GNS3 is the reference for emulating vendor network gear. Isothrum is for labs built from containers and VMs that you want to run anywhere.

IsothrumGNS3
Runs in the browser, nothing to install Yes No
Containers and VMs in one lab Yes Yes
Same lab on Docker, VMs, Proxmox and the cloud Yes No
Live consoles and packet capture Planned Yes
Cisco IOS and other vendor images No Yes

Frequently asked questions

Is Isothrum free?

Yes. The editor runs in your browser, with no account and no sign-up.

Does my lab leave my browser?

No. The engine runs in your browser as WebAssembly and your drawing is saved in your browser's local storage. The site only counts anonymous page views.

What do I need to run the lab I download?

Docker for a lab made only of containers. Vagrant with VirtualBox, VMware or libvirt for VMs, and for labs that mix containers and VMs. Terraform and a cloud account to run it in the cloud, or a Proxmox server.

What is isoloom.yml?

The open spec Isothrum writes, from the Isoloom project. One file describes the machines, the networks between them and the services they expose, and Isoloom turns it into the files for each target.

Can I use Cisco or other vendor images?

Not directly. Use an open router such as FRRouting in a container, or any VM operating system Isoloom supports.

How does routing work between cables?

Each cable is its own small network. Isothrum doesn't route between them for you: a router machine needs its own configuration, as it would in a real network.

Draw your first lab now

No account, nothing to install. Open the editor, start from the example, and download it in one click.

Open the editor
